purefil

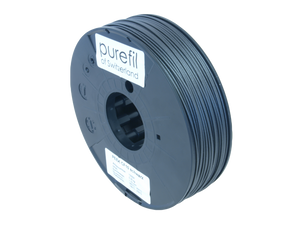

purefil PEEK CF10 0.35kg 1.75mm


Item number 100591
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/pvdtyofq45f2/plugin/48/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AVIp3QYDfOHUuC2DG7p--7lS4iiI2Jg9CdgbkEt0RYslHbygrI_00oWzv-1LT7VLd-AUsprnpQcYzF2Y"); script.setAttribute("data-currency", "CHF"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYWE4YmRlMTJkZGM1OTAyM2RmMDVkMTgwNmUyNWE3NzNmZDY2ZTE1MzgzOGI1MTM5YWVjN2RjMjQ3N2RlNjM0MXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDQtMTZUMDY6NTM6NTAuMjQwWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU0tamozZnZiZF9yV0VrV3FZME1DbXRCeHVfU05RNTY2UE96bmhQOFdIRnEzUkFFZ1M5RG5NOUZMLVRKOXFsRlJUWGNGU1B1ZVFUdjRnOHhLR3gtME5COERUYV93In19"); script.setAttribute("data-append-trailing-slash", "true"); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AVIp3QYDfOHUuC2DG7p--7lS4iiI2Jg9CdgbkEt0RYslHbygrI_00oWzv-1LT7VLd-AUsprnpQcYzF2Y"); script.setAttribute("data-currency", "CHF"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYWE4YmRlMTJkZGM1OTAyM2RmMDVkMTgwNmUyNWE3NzNmZDY2ZTE1MzgzOGI1MTM5YWVjN2RjMjQ3N2RlNjM0MXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDQtMTZUMDY6NTM6NTAuMjQwWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU0tamozZnZiZF9yV0VrV3FZME1DbXRCeHVfU05RNTY2UE96bmhQOFdIRnEzUkFFZ1M5RG5NOUZMLVRKOXFsRlJUWGNGU1B1ZVFUdjRnOHhLR3gtME5COERUYV93In19"); script.setAttribute("data-append-trailing-slash", "true"); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('661e29238b6c7', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('661e29238b6c7', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping


The use of high-quality raw materials creates a 3D printer filament that is particularly easy to process. Using a state-of-the-art manufacturing process, very low manufacturing tolerances are achieved, which leads to convincing printing results with all FDM 3D printers. Each coil is sealed in a high-quality bag.

- Made in Switzerland

- small diameter and roundness tolerances

- easy to print

PEEK CF10 is a high temperature, high strength, thermoplastic with a melting point of 350°C. PEEK filament is very chemical resistant. Only highly concentrated sulfuric acid can damage PEEK. PEEK is mainly used in the automotive industry, aerospace, high-voltage technology and medical technology. Although PEEK CF10 filament is 70% lighter than metals with similar properties, it can exhibit much of the same thermal and mechanical stability. In other words, the power-to-weight ratio is a lot better than with metal. The carbon reinforcement fibers create an ultimate high-strength material which has proven itself for various heavy-duty applications. In relation to degenerative manufacturing processes such as milling, no material is wasted with FDM printing, which has a direct positive effect on the cost-effectiveness of the components. The problem with printing PEEK filament lies in the high temperatures that have to be applied to melt the material. To print PEEK CF10, 380°C to 450°C are required.

Characteristics:

- High level of mechanical properties combined with very good temperature resistance up to 250°C (it only melts at 343°C)

- High abrasion resistance

- Water and steam resistance

- The chemical resistance of PEEK is very good, it can only be dissolved in concentrated sulfuric acid

- PEEK is often used instead of metallic materials

- Low UV resistance - brittle from exposure to sunlight

- difficult to glue, print and paint

- good electrical insulator

- slightly electrostatically charged

Material: PEEK CF10

Diameter: 1.75 +/- 0.05mm

Weight: 1kg

Nozzle temperature: 380-450 ° C

Printing table temperature: 160-200 ° C

technical datasheet DE 127/Materialdatenblatt PEEK CF10 purefil.pdf

technical datasheet EN

technical datasheet FR

technical datasheet IT
