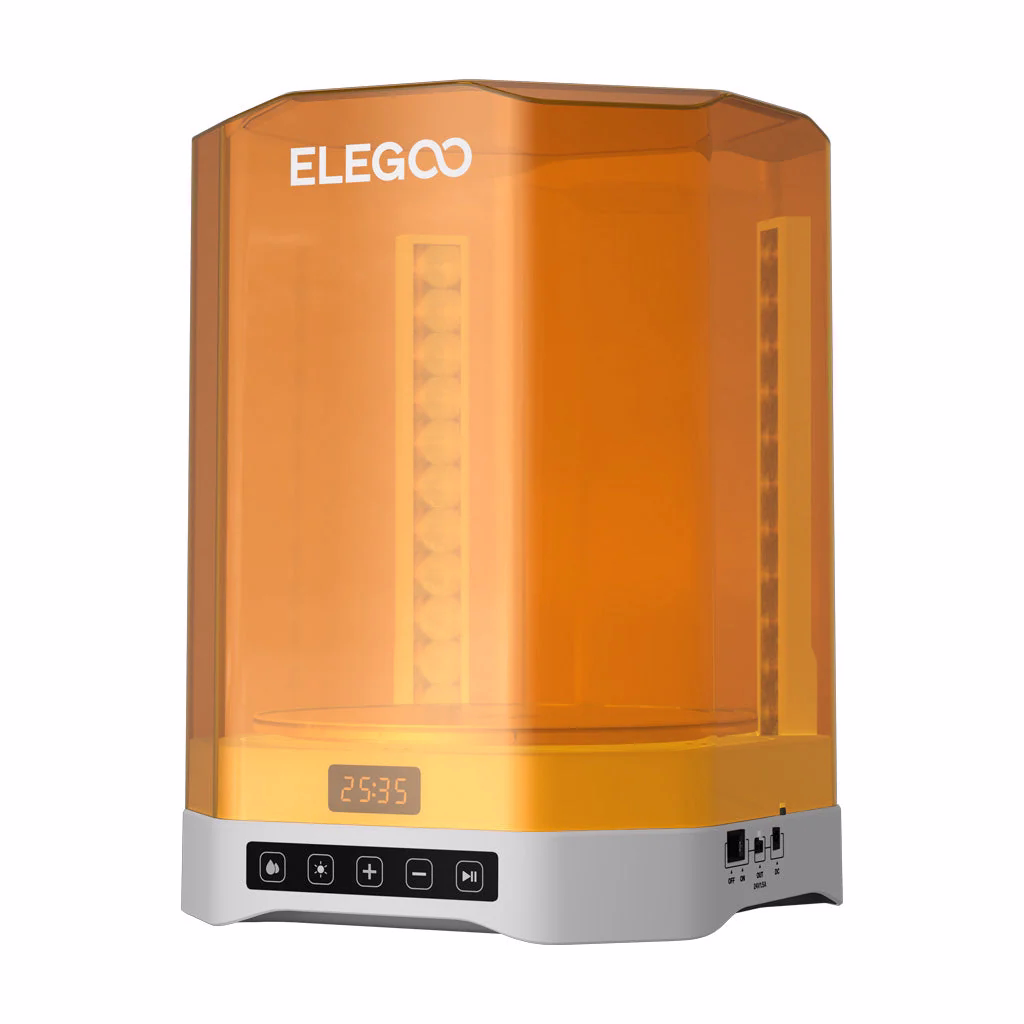

Elegoo washing and curing station Mercury Plus V3.0

Increased size for greater capacity
Upgrade to the Mercury Plus V3.0 for more capacity and efficiency. With a 7.5L cleaning capacity (114% more than the previous version) and a 460% larger curing size, it’s perfect for easily processing larger models or multiple prints in one go.

Dual cleaning options
Choose between two convenient cleaning modes, depending on your needs:

Basket mode: Remove the model from the build plate and place it directly into the basket. Ideal for quick cleaning, this mode can accommodate models up to 230mm x 135mm x 260mm.
Hanging mode: Attach the build plate to the adjustable supports and start cleaning. These supports, which can accommodate plates up to 10 inches, ensure a perfect fit. This mode is suitable for models up to 214mm x 135mm x 180mm.
Deep cleaning
Thanks to its new generation POM bearing, the Mercury Plus V3.0 offers ultra-smooth rotation and even more efficient water agitation. This means that your models are cleaned more effectively and the residual resin disappears completely.

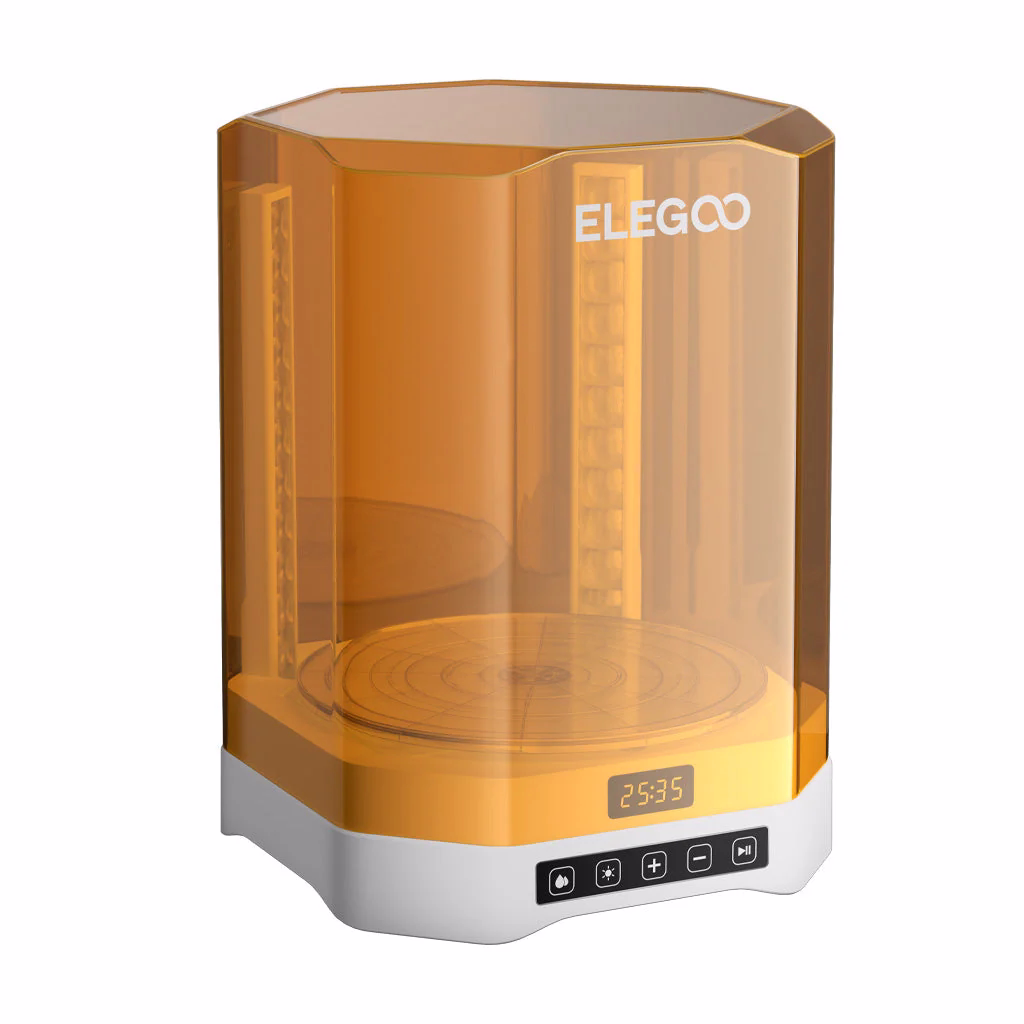

Powerful 360° curing all around
With its 360° rotating plate and 24 405 nm UV lamps, this machine ensures fast and even curing, perfect for highlighting every detail of your models. Thanks to the light columns and reflective mirrors placed under the transparent plate, the light is optimally distributed. This means that you will have curing from top to bottom and excellent quality surfaces.

Simple operation, easy use
The machine is equipped with a very intuitive touch panel that allows you to easily check the settings and the remaining time. You can adjust the washing and curing duration, up to a maximum of 30 minutes, to obtain perfect results every time.

UV Protection Cover
The machine's UV protection cover blocks 99.9% of ultraviolet rays to protect your eyes while providing optimal curing. For added safety, the micro switch automatically stops the process if you remove the cover, ensuring convenient and safe use.

Wide Compatibility
This machine is compatible with most LCD, DLP and SLA 3D printers, making it a great choice for simplifying and optimizing the post-processing of your prints.
It is specially designed for Elegoo resin 3D printers. If you are using the Jupiter series, you will need to remove the print bed for cleaning. For other models, just check the "MAXIMUM WASH VOLUME" section in the specifications to see if removing the bed is necessary depending on the height of your print.

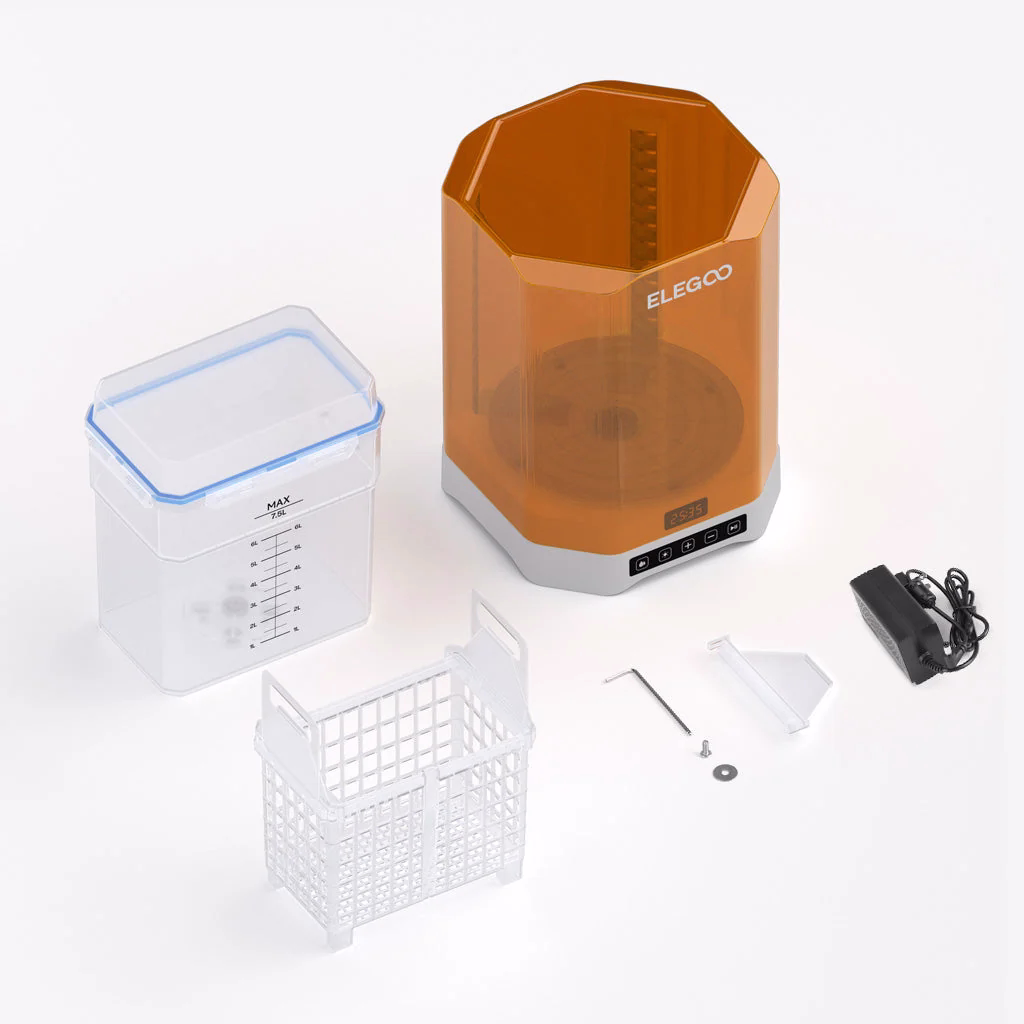

Box contents
1x Mercury Plus V3.0
1x Cleaning tray
1x Drying turntable
1x Cleaning basket
2x Adjustable supports
1x User manual
1x Tool kit
1x Power cable

Control method Touch button
Power supply 100-240V 50/60Hz 24V 2.5A
Dimensions 302.5 x 302.5 x 412.5 mm
Package dimensions 379 x 379 x 497 mm
Net weight 4.7 kg
Package weight 6.3 kg
Maximum washing volume 214 x 135 x 180 mm (with tray)
230 x 135 x 260 mm (without tray)
Maximum curing volume 250 mm in diameter and 290 mm in height
